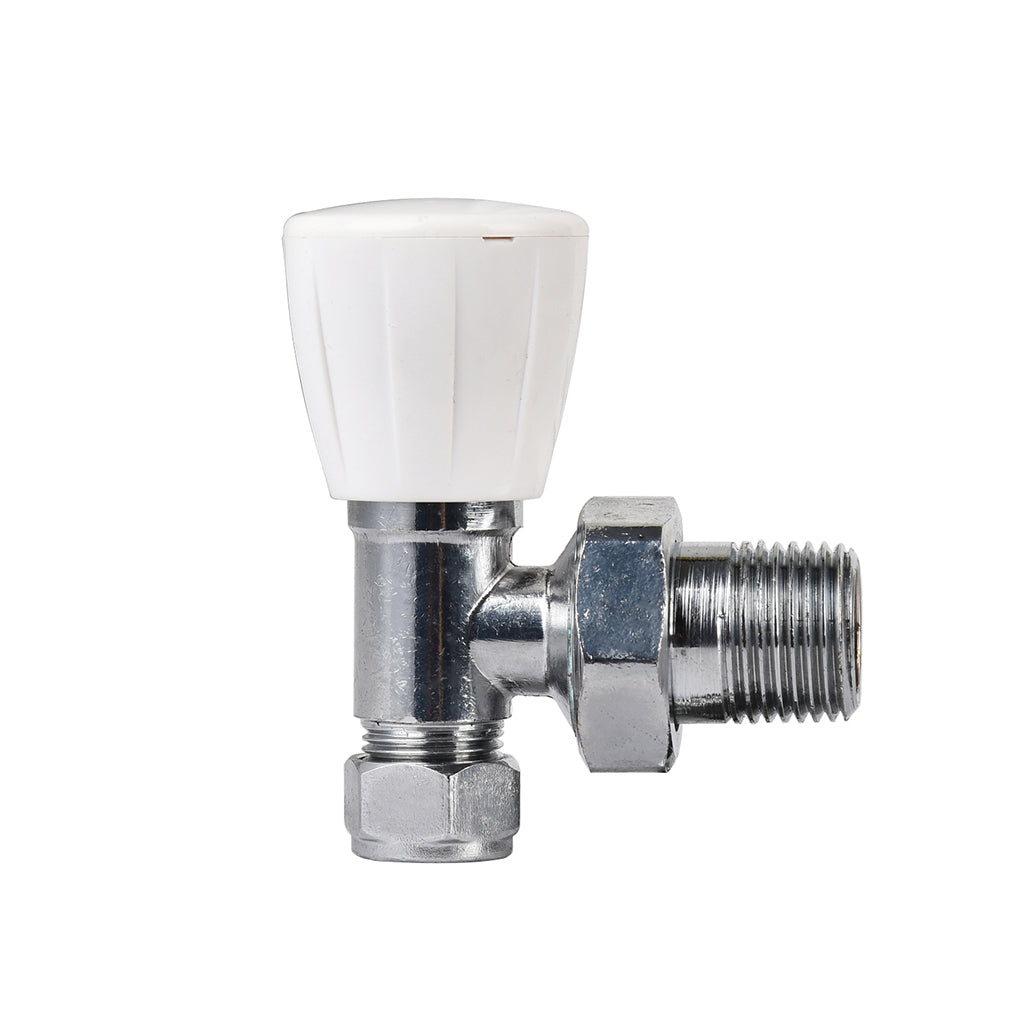

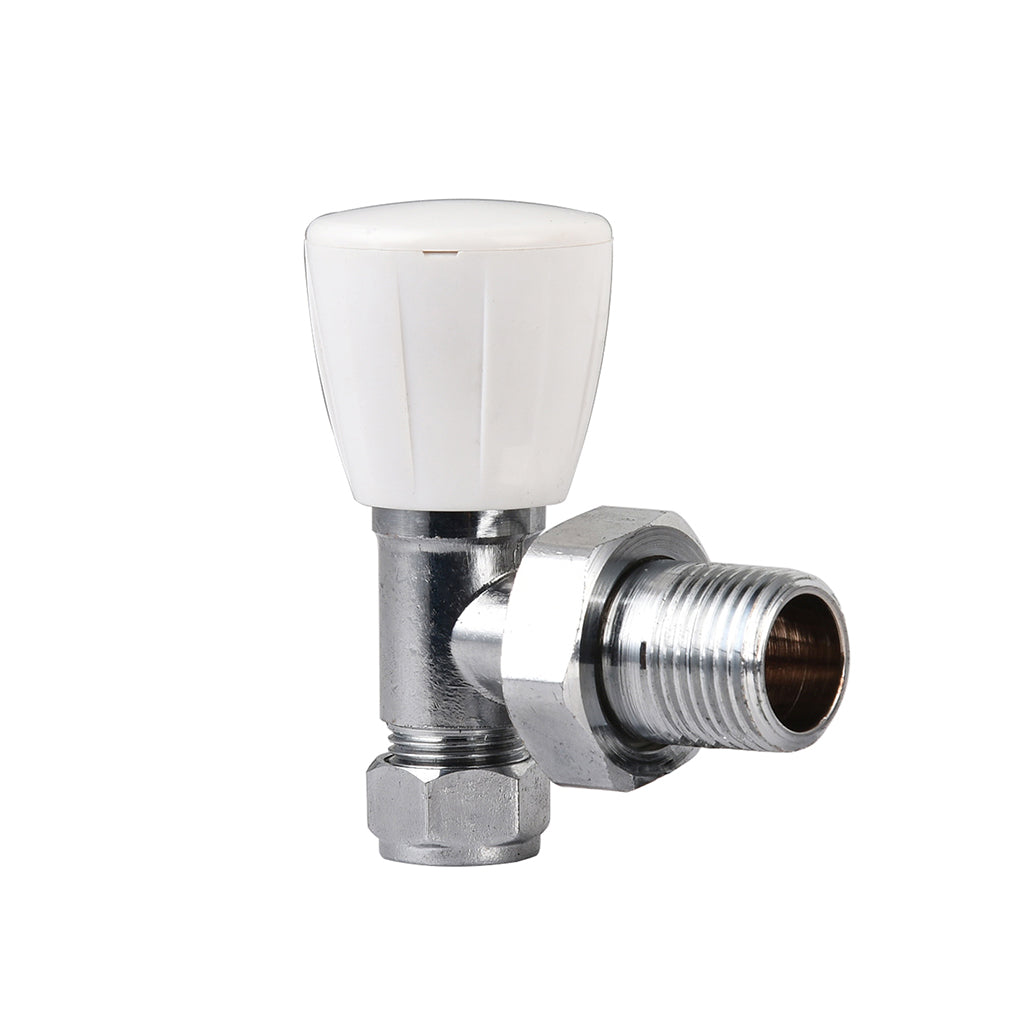

10mm Angled Manual Radiator Valve

  • £3.80

Only -8 left!

If i don't have a paypal account, How can i pay?



Manual radiator valve with reversible flow, angled body, 10mm connection and interchangeable handwheel and lockshield cap.

Features

  • Dual function body can be used as a wheelhead or lockshield
  • Reversible flow body can be mounted vertically or horizontally
  • 10mm copper connections
  • Quality stem valve body ensures leak free operation

Material

    • Body and main components:  CW614N brass
    • Manual handwheel:                 ABS
    • Gaskets:                                EPDM

    Specification

    • Maximum Working Pressure      10 bar
    • Maximum Pressure differential     2 bar
    • Minimum Flow Temperature           2˚C
    • Maximum Flow Temperature      100˚C
    Code Connections Finishing
    9002 10mm x 1/2” Angled Chrome Plated Brass 1 20

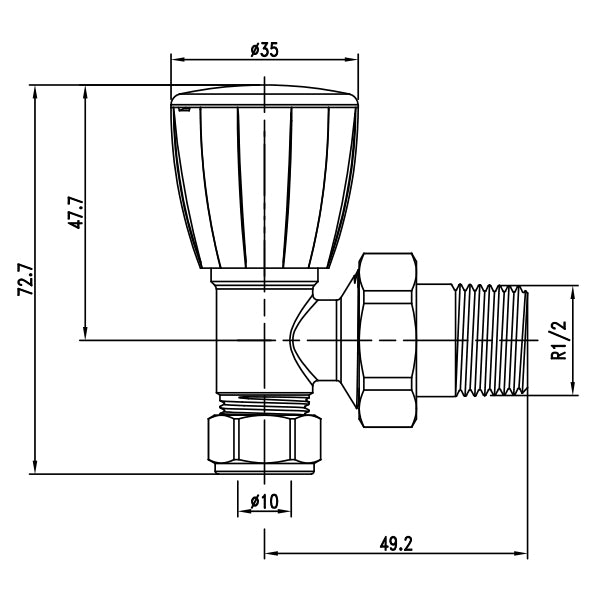

     Dimensions (mm)

    diagram of 10mm Angled Manual Radiator Valve

    Maintenance

    For maintenance purposes, it is possible to replace the handwheel by removing the upper part and unscrewing the wrench with an appropriate screw driver. This operation may be carried out without stopping the system.

    diagram of the installation for manual radiator valve
