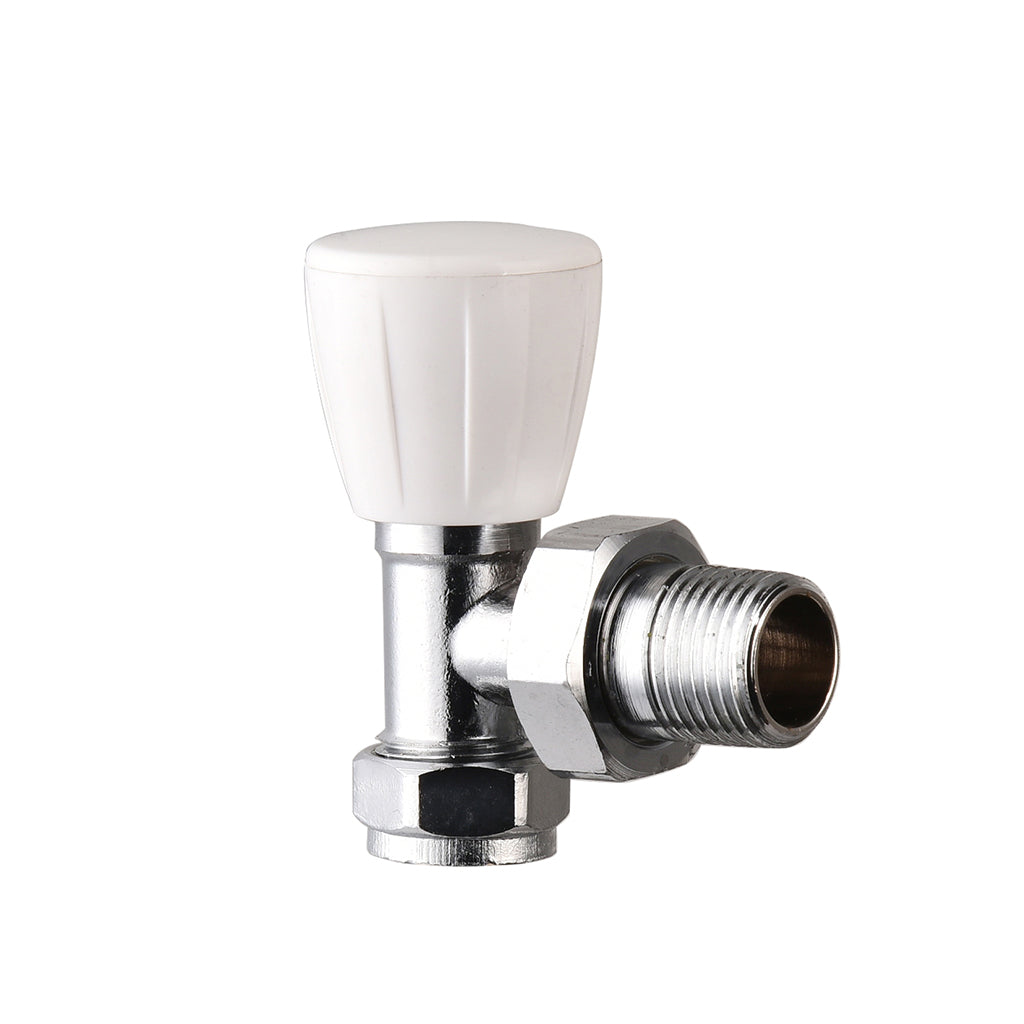

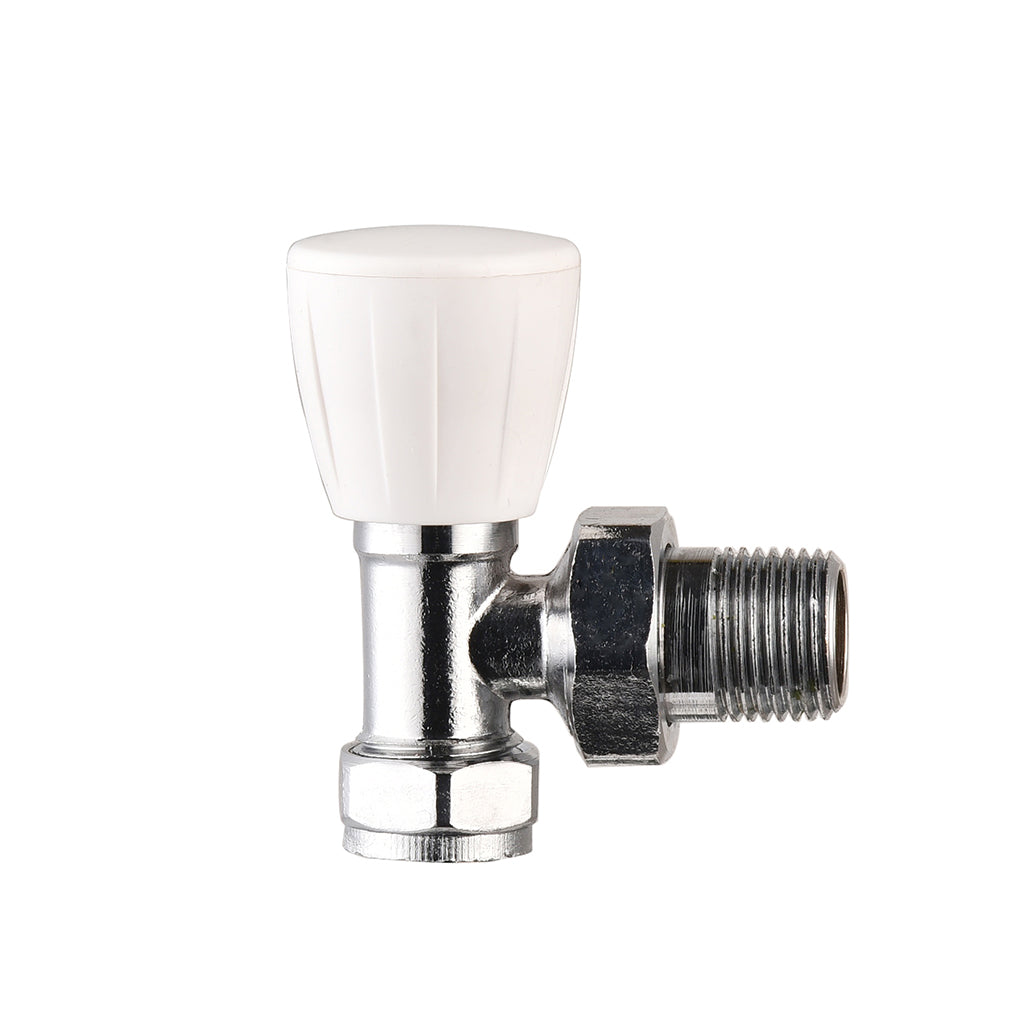

15mm Angled Manual Radiator Valve

  • £3.70

Only -21 left!

If i don't have a paypal account, How can i pay?



Manual radiator valve with reversible flow, angled body, 15mm connection and interchangeable handwheel and lockshield cap.

Features

  • Dual function body can be used as a wheelhead or lockshield
  • Reversible flow body can be mounted vertically or horizontally
  • 15mm copper connections
  • Quality stem valve body ensures leak free operation

Material

    • Body and main components:  CW614N brass
    • Manual handwheel:                 ABS
    • Gaskets:                                EPDM

    Specification

    • Maximum Working Pressure      10 bar
    • Maximum Pressure differential     2 bar
    • Minimum Flow Temperature           2˚C
    • Maximum Flow Temperature      100˚C
    Code Connections Finishing
    9001 15mm x 1/2” Angled Chrome Plated Brass 1 20

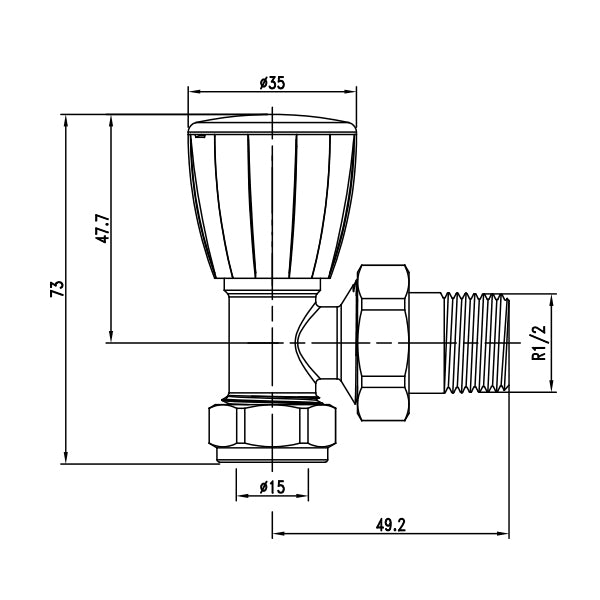

     Dimensions (mm)

    diagram of 15mm Angled Manual Radiator Valve

    Maintenance

    For maintenance purposes, it is possible to replace the handwheel by removing the upper part and unscrewing the wrench with an appropriate screw driver. This operation may be carried out without stopping the system.

    diagram of the maintenance for Manual Radiator Valve
